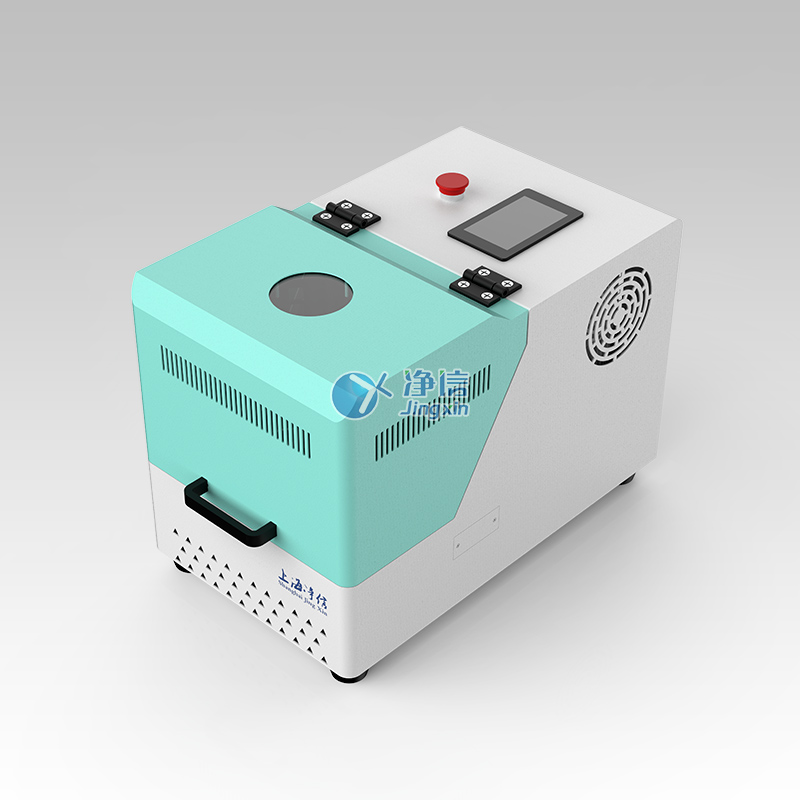

Product Description:
JX Soil Ball Mill is a special high-performance mechanical equipment for the preparation of small ultra-fine powders, which is innovatively improved and developed by our company. A large number of user applications show that the soil ball mill has the characteristics of small size, light weight, easy operation and no pollution, and is very suitable for the use of various types of soil grinding in the laboratory. The advanced planetary structure of the soil machine increases the grinding efficiency by more than ten times; the four tanks are separately charged, so that different materials do not affect each other. Gear transmission ensures the consistency and repeatability of the experiment; fast rotation, high energy Large, high efficiency and fine particle size; four samples of different sizes and materials can be obtained simultaneously in one experiment;
Soil ball mill advantages:
1. Injection size: ≤10 mm, other materials ≤3mm, discharge particle size: <100nm, dry grinding or wet grinding;
2. The pressure can be set (by the scale), digital timing;
3. 7 kinds of grinding kits of different materials can be provided: stainless steel, agate, etc.
4. Real-time power display, crushing time setting, digital format, continuous operation from 1 to 99 minutes;
5. The grinding chamber is designed to be sealed and dustproof, with observation window;
6. High-power drive, with electronic monitoring device.
Technical parameter:
The main parameters | Parameter range |
Brand name: | JXFSTPRP net letter |
product name: | Soil Ball Mill |
Model: | JX-2GL |
Operation method: | LCD liquid crystal touch display |
Injection size (varies in material): | ≤10mm, other materials ≤3mm |
Sample size: | <100nm |
Processing volume: | 50ml/can |
Ball mill tank capacity: | 4x100ml |
Main disc speed: | 35-435r/min |
Ball mill rotation speed: | 70-870r/min |
Transmission ratio (planetary disc/ball mill): | 1:2 |
Forward and reverse operation: | Yes |
Continuous running time setting: | 1-9999 min |
Pause time setting: | 1-999 min |
Dangerous emergency stop: | Yes |
Grinding Room Lighting Description: | LED blue light |
Touch screen: | adaptation |
Vector volume: | 50ml -100ml |
Ball Milling Media Material: | Stainless steel, agate, zirconia, corundum, nylon, teflon optional |
Media Diameter: | 3/5/10/15/20mm |
Media Quality: | 100-400g |
Grinding method: | Dry grinding / Wet grinding |
Low temperature cooling treatment: | Yes (additional) |
Inert gas protection treatment: | Yes |
Net weight: | 29kg |
Dimensions (length, width and height): | 530*300*340mm |
Standard: | JXFSTPRP Jingxin |
Tank ball ratio:
Tank ball ratio: |
|
Grinding jar | 100ml |
Effective volume | 1-50ml |
Ball size | Number of balls |
5mm | 300 |
10mm | 30 |
15mm | 15 |
20mm | 8 |
Experimental case:
1. Description:
(1) Application field: environment;
(2) Materials/raw materials: soil, pebbles;
(3) Feed particle size: 1mm;
(4) Feeding amount: 500g;
(5) Material properties: brittle;
(6) Customer requirements: 50μm;
(7) Post-sequence analysis: particle size analysis.
2. Scheme:
(1) Equipment (instrument) selection: JX-2G, soil ball mill;
(2) Jar and ball configuration: agate jar with agate ball;
(3) Operating parameters: 500 r/min rotation, alternately running forward and reverse after 30 minutes;
(4) Grinding time: 1 hour;
(5) Result (recommended): JX-2G can be used to grind the soil;
(6) Grinding result: 100%＜50μm.
